Differential Scanning Calorimeter (DSC)
Product Overview
Differential Scanning Calorimeter (DSC)
Product Overview

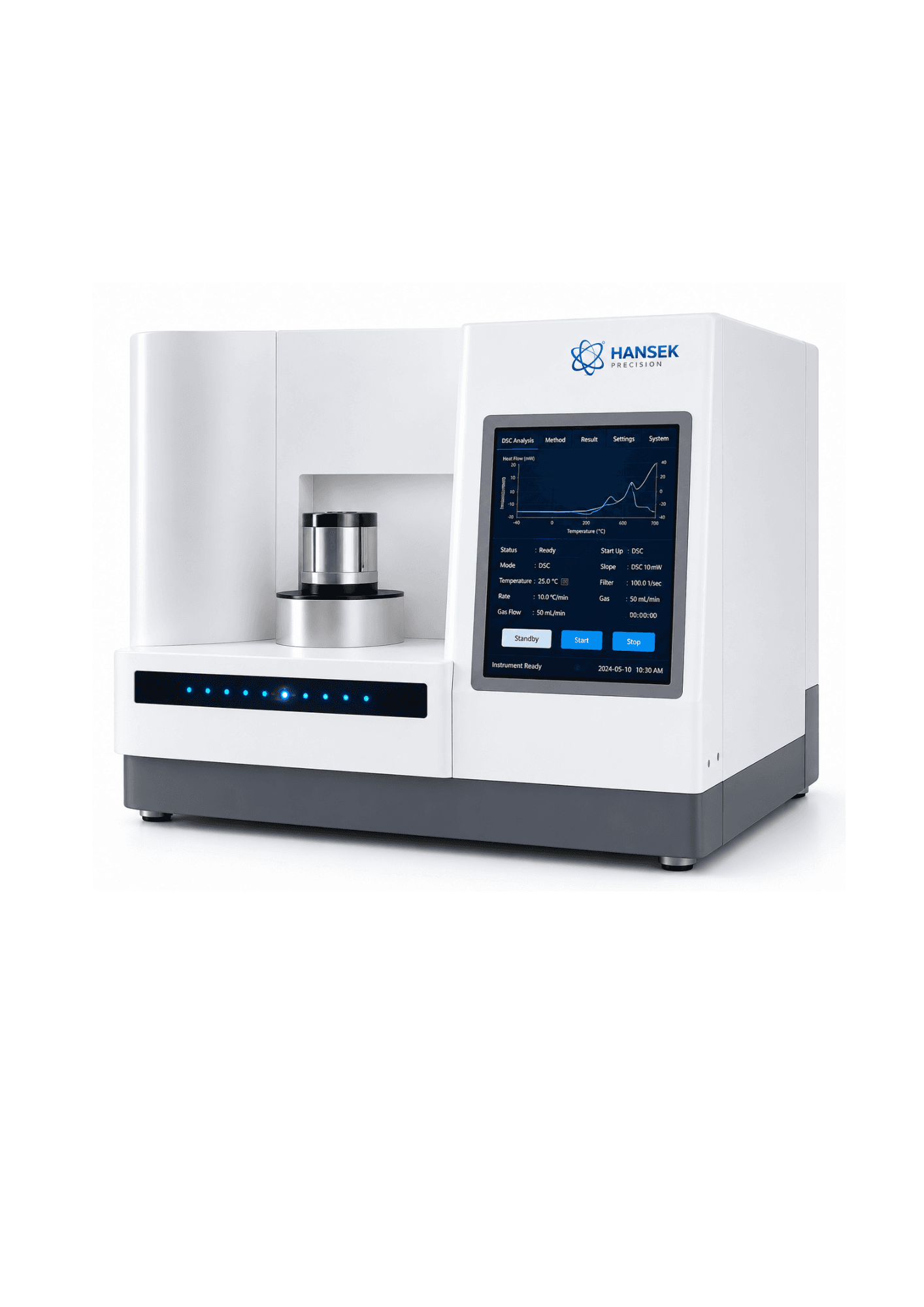

The DSC-600HP Differential Scanning Calorimeter is an advanced thermal analysis system engineered to deliver exceptional accuracy, unmatched stability, and intelligent control for precise material characterization. Designed for researchers and quality control laboratories, the instrument combines advanced heat-flow sensor technology, modular architecture, and intelligent software to provide reliable thermal analysis across a wide temperature range.
Built around a high-sensitivity heat-flow measurement platform, the DSC-600HP enables accurate investigation of thermal transitions, phase changes, melting behavior, crystallization processes, oxidation stability, curing reactions, and heat capacity characteristics of materials. Its advanced sensor design ensures excellent sensitivity, superior baseline stability, and highly reproducible analytical results.
The system incorporates a high-stability furnace, intelligent gas management, programmable atmosphere control, and a modular cooling architecture that allows rapid cooling module replacement without affecting furnace performance. These features provide enhanced operational flexibility, improved productivity, and consistent analytical performance across diverse applications.
Equipped with intuitive software featuring smart automation, real-time monitoring, customizable methods, and advanced data analysis tools, the DSC-600HP simplifies thermal analysis workflows while enabling efficient data acquisition, interpretation, and reporting.
Designed for versatility, the instrument is ideally suited for applications in polymer science, pharmaceuticals, food analysis, petrochemicals, material science, nanotechnology, industrial quality control, and academic research. Its robust design and intelligent thermal management system ensure dependable operation in both routine testing and advanced research environments.
Overall, the DSC-600HP Differential Scanning Calorimeter provides a powerful solution for modern thermal characterization, combining precision measurement, intelligent technology, and reliable performance to deliver accurate thermal analysis results across a broad range of scientific and industrial applications.
Capabilities
Key Features
Technical Data
Specifications
| Parameter | Value |
|---|---|
| Instrument Type | Differential Scanning Calorimeter (DSC) |
| Model | DSC-600HP |
| Measurement Principle | Heat-Flow Differential Scanning Calorimetry |
| Sensor Technology | Tzero™ Heat-Flow Sensor |
| Temperature Range | -35 °C to +700 °C |
| Temperature Accuracy | ±0.1 °C |
| Temperature Precision | ±0.01 °C |
| Heating Rate | Up to 300 °C/min |
| Cooling Rate | Up to 200 K/min with optional cooling module |
| DSC Measurement Range | ±2,500 mW |
| DSC Resolution | 0.01 μW |
| DSC Accuracy | ±1% |
| Furnace Design | High-Stability Furnace with uniform temperature control |
| Cooling System | Modular Cooling Architecture with exchangeable cooling module |
| Gas Flow Control | 100 mL/min, programmable |
| Compliance Standards | ASTM D3418, ASTM E793, ASTM D3895, ASTM D4591, ASTM D6604, ASTM E48, ASTM E2716, ISO 11357, ISO 19935, and equivalent standards |
| Power Supply | AC 220–240 V, 50/60 Hz |
| Software Features | Smart automation, real-time monitoring, customizable methods, advanced data analysis, and report generation |
